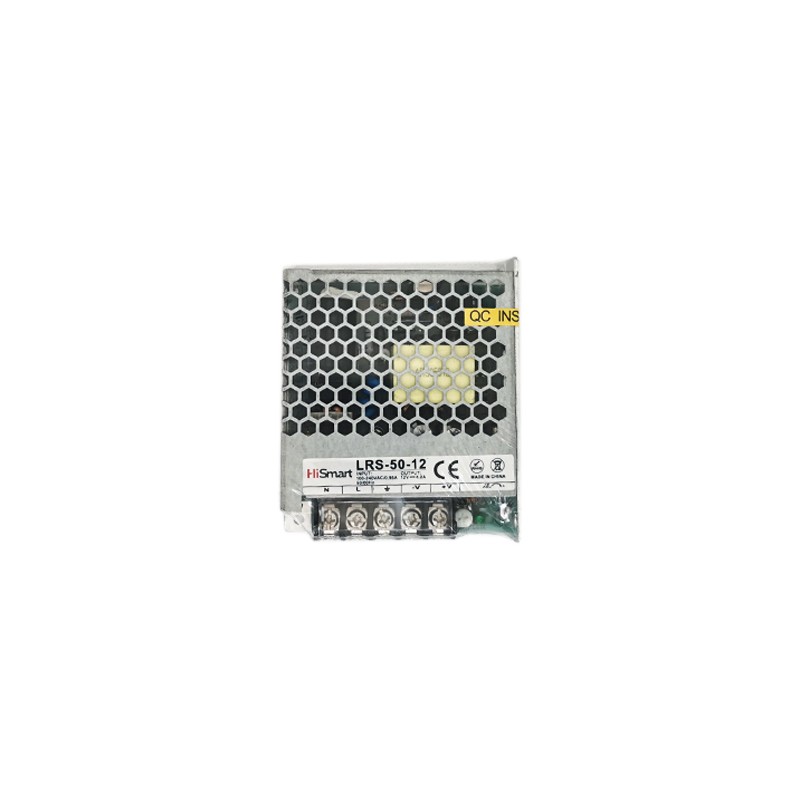

Power supply 12V, 4.2A, 50W.
Features:Ultra thin type 1U profile switching power supply operating in pulse mode.Small volume, low weight, high efficiency.Cooling by free air convection.Protections: short circuit / overload / over voltage.No load consumption: <0.5W.Operating altitude up to 5000 meters.
Specifications:Type: switching power supply.Input range AC: 90-264V. Frequency 47-63Hz.Output voltage DC: 12V.DC voltage adjustable range: ±10%.Rated current: 4.2A.Rated power: 50.4W.AC current: 0.95A/115V, 0.56A/230V.Ripple and noise: 120mV p-p.Effieciency: 86%.Leakage current: <0.75mA / 240V AC.MBTF: min 630000 hours.Working temperature: -30°C~+70°C.Working humidity: 20%-90%RH.Dimension: 99x82x30mm.Weight: 0.21kg.
Warranty: 24 months.
Features:Ultra thin type 1U profile switching power supply operating in pulse mode.Small volume, low weight, high efficiency.Cooling by free air convection.Protections: short circuit / overload / over voltage.No load consumption: <0.5W.Operating altitude up to 5000 meters.
Specifications:Type: switching power supply.Input range AC: 90-264V. Frequency 47-63Hz.Output voltage DC: 12V.DC voltage adjustable range: ±10%.Rated current: 4.2A.Rated power: 50.4W.AC current: 0.95A/115V, 0.56A/230V.Ripple and noise: 120mV p-p.Effieciency: 86%.Leakage current: <0.75mA / 240V AC.MBTF: min 630000 hours.Working temperature: -30°C~+70°C.Working humidity: 20%-90%RH.Dimension: 99x82x30mm.Weight: 0.21kg.
Warranty: 24 months.
