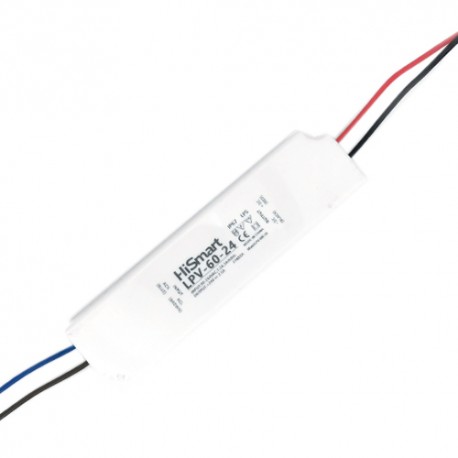

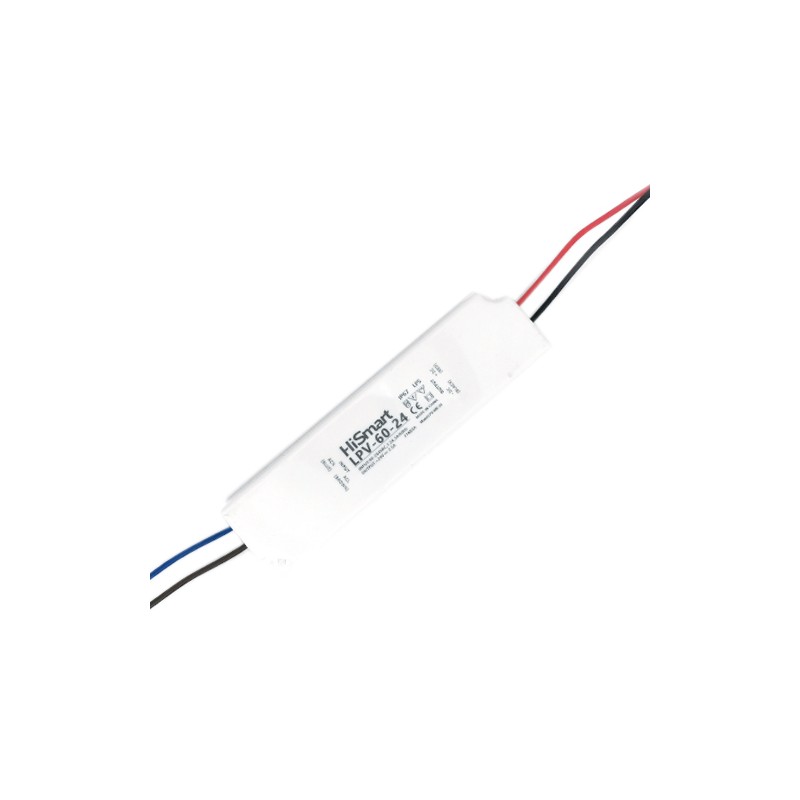

Power supply 24V, 2.5A, 60W, waterproof IP67.
Features:
Small volume, low weight, high efficiency.
Cooling by free air convection.
Protections: short circuit / overload / over voltage.
IP67 design for indoor or outdoor installations.
Specifications:
Input range AC: 90-264V. Frequency 47-63Hz.
Output voltage DC: 24V.
Rated current: 2.5A.
Rated power: 60W.
AC current: 1.2A/115V, 1A/230V.
Ripple and noise: 150mV p-p.
Efficiency: 86%.
Leakage current: <0.25mA/240V AC.
MBTF: min 786500 hours.
Working temperature: -30°C~+70°C.
Working humidity: 20%-90%RH.
Dimension: 162.5x42.5x32mm.
Weight: 0.4kg.
Warranty: 24 months.
Features:
Small volume, low weight, high efficiency.
Cooling by free air convection.
Protections: short circuit / overload / over voltage.
IP67 design for indoor or outdoor installations.
Specifications:
Input range AC: 90-264V. Frequency 47-63Hz.
Output voltage DC: 24V.
Rated current: 2.5A.
Rated power: 60W.
AC current: 1.2A/115V, 1A/230V.
Ripple and noise: 150mV p-p.
Efficiency: 86%.
Leakage current: <0.25mA/240V AC.
MBTF: min 786500 hours.
Working temperature: -30°C~+70°C.
Working humidity: 20%-90%RH.
Dimension: 162.5x42.5x32mm.
Weight: 0.4kg.
Warranty: 24 months.
