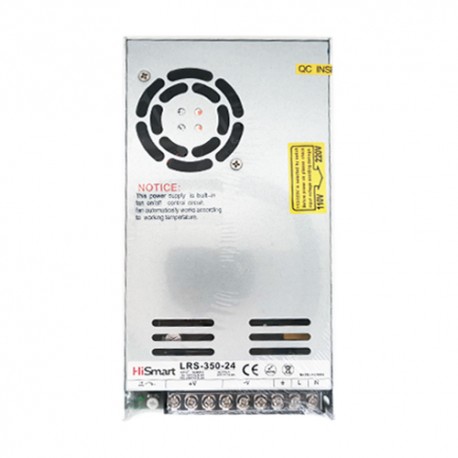

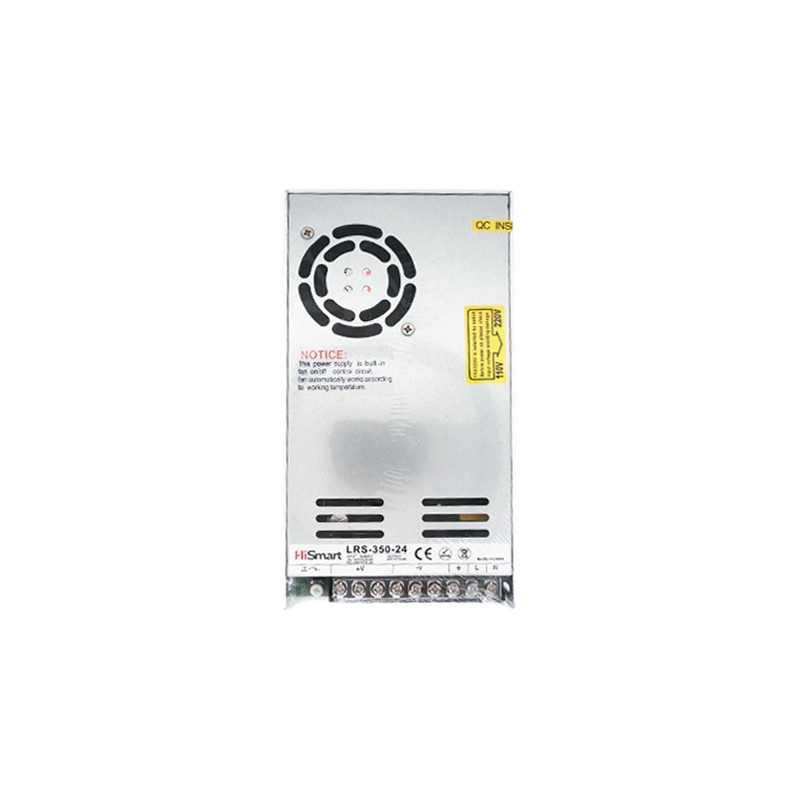

Power supply 24V, 14.6A, 350W View larger

Power supply 24V, 14.6A, 350W

LRS-350-24

New product

5 Items

€30.00 Tax included

Pristatysime per 2 dienas

Add to wishlist

More info

Power supply 24V, 14.6A, 350W with fan.
Features:Thin type 1U profile switching power supply operating in pulse mode.Small volume, low weight, high efficiency.Protections: short circuit / over temperature / overload / over voltage.No load consumption: <0.75W.Operating altitude up to 5000 meters.Forced air cooling by built-in DC fan.Built-in cooling fan ON-OFF control.
Specifications:Type: switching power supply.Input range AC: 90-264V. Frequency 47-63Hz.Output voltage DC: 24V.DC voltage adjustable range: ±10%.Rated current: 14.6A.Rated power: 350.4W.AC current: 6.8A/115V, 3.4A/230V.Ripple and noise: 150mV p-p.Effieciency: 88%.Leakage current: <2mA / 240V AC.MBTF: min 295000 hours.Working temperature: -25°C~+70°C.Working humidity: 20%-90%RH.Dimension: 215x115x30mm.Weight: 0.76kg.
Warranty: 24 months.
