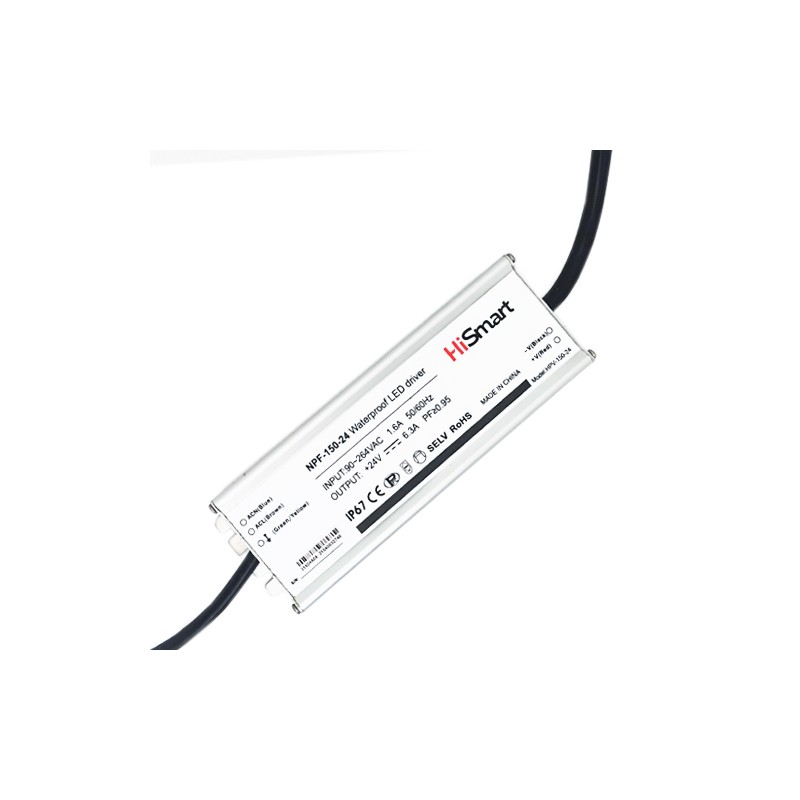

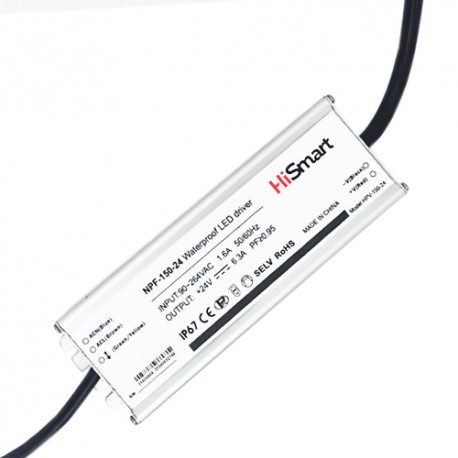

Power supply 24V, 6.3A, 150W, PFC, IP67
NPF-150-24
New product
Power supply 24V, 6.3A, 150W, PFC, IP67.
Features:Built-in power factor correction PFC.Cooling by free air convection.Protections: short circuit / overload / over voltage / over temperature.IP67 design for indoor or outdoor installations.
Specifications:Type: switching power supply.Input range AC: 90-264V. Frequency 47-63Hz.Output voltage DC: 24V.Rated current: 6.3A.Rated power: 151.2W.AC current: 1.7A/115V, 0.75A/230V.Ripple and noise: 150mV p-p.Efficiency: 90%.Leakage current: <0.75mA/240V AC.Working temperature: -30°C~+60°C.Working humidity: 20%-90%RH.Dimension: 231x69x39mm.Weight: 1.1kg.
Warranty: 24 months.
Features:Built-in power factor correction PFC.Cooling by free air convection.Protections: short circuit / overload / over voltage / over temperature.IP67 design for indoor or outdoor installations.
Specifications:Type: switching power supply.Input range AC: 90-264V. Frequency 47-63Hz.Output voltage DC: 24V.Rated current: 6.3A.Rated power: 151.2W.AC current: 1.7A/115V, 0.75A/230V.Ripple and noise: 150mV p-p.Efficiency: 90%.Leakage current: <0.75mA/240V AC.Working temperature: -30°C~+60°C.Working humidity: 20%-90%RH.Dimension: 231x69x39mm.Weight: 1.1kg.
Warranty: 24 months.
