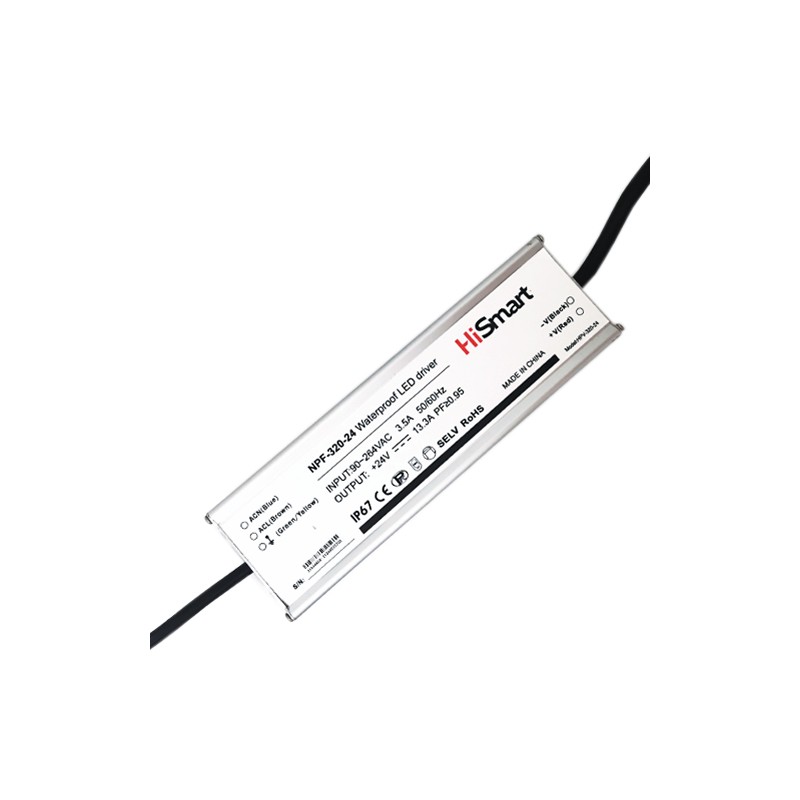

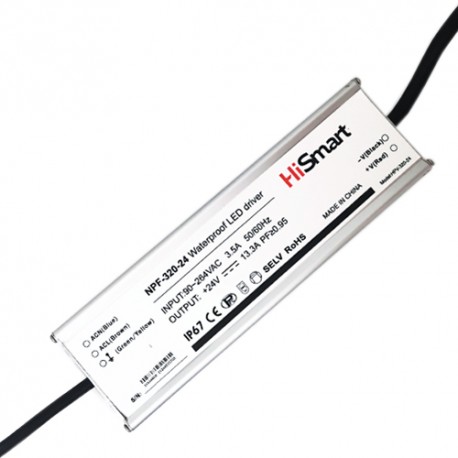

Power supply 24V, 13.3A, 320W, PFC, IP67.
Features:
Built-in power factor correction PFC.
Cooling by free air convection.
Protections: short circuit / overload / over voltage / over temperature.
IP67 design for indoor or outdoor installations.
Specifications:
Type: switching power supply.
Input range AC: 90-264V. Frequency 47-63Hz.
Output voltage DC: 24V.
Rated current: 13.3A.
Rated power: 319.2W.
AC current: 6A/115V, 4A/230V.
Ripple and noise: 150mV p-p.
Efficiency: 92%.
Leakage current: <0.75mA/240V AC.
Working temperature: -30°C~+60°C.
Working humidity: 20%-90%RH.
Dimension: 249x69x39mm.
Weight: 1.3kg.
Warranty: 24 months.
Features:
Built-in power factor correction PFC.
Cooling by free air convection.
Protections: short circuit / overload / over voltage / over temperature.
IP67 design for indoor or outdoor installations.
Specifications:
Type: switching power supply.
Input range AC: 90-264V. Frequency 47-63Hz.
Output voltage DC: 24V.
Rated current: 13.3A.
Rated power: 319.2W.
AC current: 6A/115V, 4A/230V.
Ripple and noise: 150mV p-p.
Efficiency: 92%.
Leakage current: <0.75mA/240V AC.
Working temperature: -30°C~+60°C.
Working humidity: 20%-90%RH.
Dimension: 249x69x39mm.
Weight: 1.3kg.
Warranty: 24 months.
