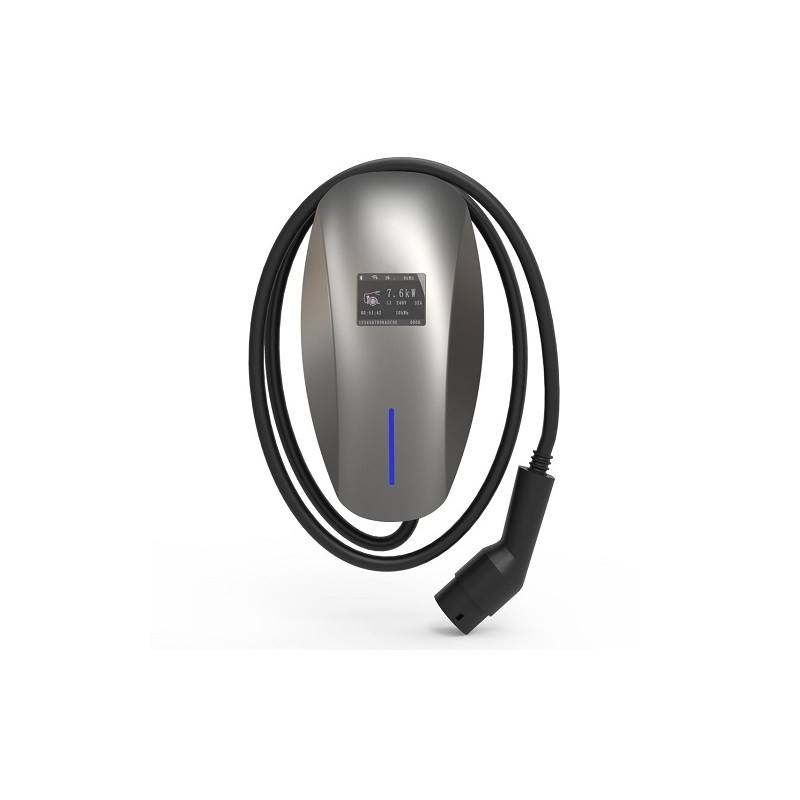

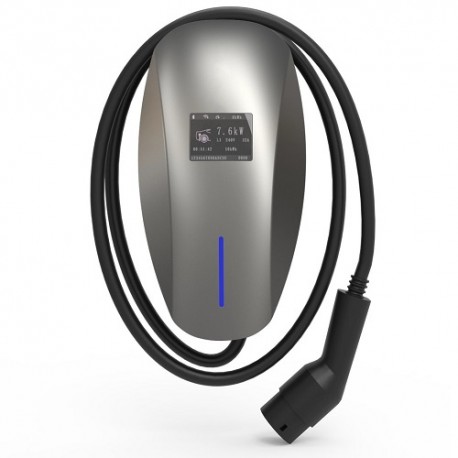

Electric Car Charging Station, Type 2, 22kW, 32A, 3-fazė, 5m
EV200702
New product
5 Items
More info
Charging station for electric cars 22kW, 32A, 3-phase, with Type 2 connector, wall-box, IP65 (for indoor and outdoor conditions), charging cable 5m.
Features:
The charging station allows charging up to 22kW.
Charging cable for electric cars 5m.
Type 2 connector, European standard. Compatible with any electric or hybrid vehicle using an appropriate adapter (Type 1 Yazaki, Tesla, etc.).
With display and charging indicators.
Easy to use, intuitive interface allows you select the desired charging mode quickly and easily.
App control supported.
Plug&Play supported (charging starts automatically after connecting the device to the battery of an electric vehicle).
4 RFID cards are included.
Specifications:
Max. charging current: 32A (3-phase).
Max. charging power: 22kW (3-phase).
Input: 400V +/- 40V AC (3-phase), 32A (max.), 50 / 60Hz.
Output: socket IEC 62196, Type2 (European), Mennekes, 7 contacts.
Housing material: plastic.
Color: silver.
Communication: Bluetooth, Wi-Fi 2.4Ghz.
Working temperature: -30°C-50°C.
Storage temperature: -40°C-75°C.
Operating humidity: <95% RH.
Safety class: IP65 (adapted to indoor and outdoor conditions).
Protection: emergency stop, overload, short circuit, power line, leakage, ground protection.
Certifications: CE, ROHS, REACH.
Dimensions: 400 x 210 x 145 mm.
Weight: 9kg.
Warranty: 24 months.
Features:
The charging station allows charging up to 22kW.
Charging cable for electric cars 5m.
Type 2 connector, European standard. Compatible with any electric or hybrid vehicle using an appropriate adapter (Type 1 Yazaki, Tesla, etc.).
With display and charging indicators.
Easy to use, intuitive interface allows you select the desired charging mode quickly and easily.
App control supported.
Plug&Play supported (charging starts automatically after connecting the device to the battery of an electric vehicle).
4 RFID cards are included.
Specifications:
Max. charging current: 32A (3-phase).
Max. charging power: 22kW (3-phase).
Input: 400V +/- 40V AC (3-phase), 32A (max.), 50 / 60Hz.
Output: socket IEC 62196, Type2 (European), Mennekes, 7 contacts.
Housing material: plastic.
Color: silver.
Communication: Bluetooth, Wi-Fi 2.4Ghz.
Working temperature: -30°C-50°C.
Storage temperature: -40°C-75°C.
Operating humidity: <95% RH.
Safety class: IP65 (adapted to indoor and outdoor conditions).
Protection: emergency stop, overload, short circuit, power line, leakage, ground protection.
Certifications: CE, ROHS, REACH.
Dimensions: 400 x 210 x 145 mm.
Weight: 9kg.
Warranty: 24 months.
