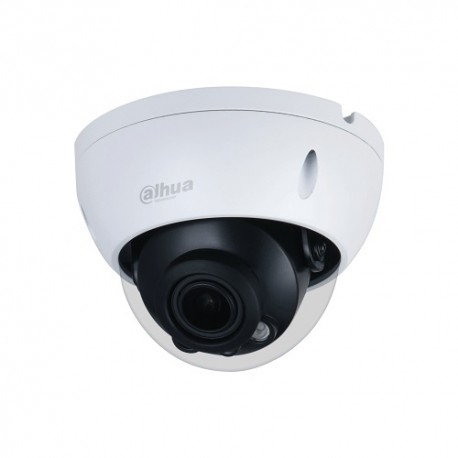

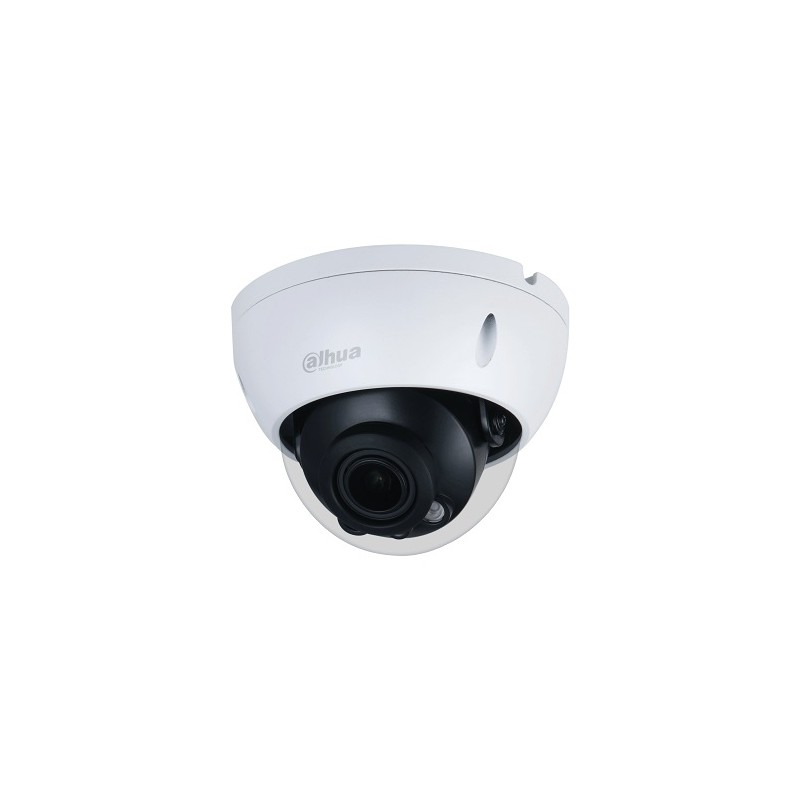

> >>IP network camera 5MP HDBW2541RP-ZS
IP network camera 5MP HDBW2541RP-ZS View larger

IP network camera 5MP HDBW2541RP-ZS

HDBW2541RPZS

New product

42 Items

€266.20 Tax included

Pristatysime per 2 dienas

Add to wishlist

More info

Camera
Image Sensor 1/2.7" CMOS
Max. Resolution 2592 (H) × 1944 (V)
ROM 128 MB
RAM 512 MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s
Min. Illumination 0.005 lux@F1.5(Color,30 IRE)
0.0005 lux@F1.5(B/W,30 IRE)
0 lux (Illuminator on)
S/N Ratio >56 dB
Illumination Distance 40 m (131.23 ft) (IR LED)
Illuminator On/Off Control Auto; Manual
Illuminator Number 2 (IR LED)
Pan/Tilt/Rotation Range Pan: 0°–355°
Tilt: 0°–75°
Rotation: 0°–355°
Lens
Lens Type Motorized vari-focal
Lens Mount ?14
Focal Length 2.7 mm–13.5 mm
Max. Aperture F1.5
Field of View H: 100°–30°
V: 72° –23°
D: 134° –38°
Iris Control Fixed
Close Focus Distance 0.8 m (2.62 ft)
DORI Distance Lens Detect Observe Recognize Identify
W 64.4 m (211.29 ft) 25.8 m (84.65 ft) 12.9 m (42.32 ft) 6.4 m (21.00 ft)
T 221.4 m (726.37 ft) 88.6 m (290.68 ft) 44.3 m (145.34 ft) 22.1 m (72.51 ft)
Intelligence
IVS (Perimeter Protection) Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)
Smart Search Work together with Smart NVR to perform refine
intelligent search, event extraction and merging to event
videos
Video
Video Compression H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
Smart Codec Smart H.265+; Smart H.264+
Video Frame Rate Main stream: 2592 × 1944@(1–20 fps)/2688 × 1520@(1–25/30 fps)
sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps)
Stream Capability 2 streams
Resolution 5M (2592 × 1944); 4M (2688 × 1520); 3M (2304 × 1296);
1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280
× 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF
(352 × 288/352 × 240)
Bit Rate Control CBR/VBR
Video Bit Rate H.264: 3 kbps–8192 kbps
H.265: 3 kbps–8192 kbps
Day/Night Auto(ICR)/Color/B/W
BLC Yes
HLC Yes
WDR 120 dB
Scene Self-adaptation (SSA) Yes
White Balance Auto; natural; street lamp; outdoor; manual; regional custom
Gain Control Auto;Manual
Noise Reduction 3D DNR
Motion Detection OFF/ON (4 areas, rectangular)
Region of Interest (RoI) Yes (4 areas)
Smart Illumination Yes
Image Rotation 0°/90°/180°/270° (Support 90°/270° with 1080p resolution and lower)
Mirror Yes
Privacy Masking 4 areas
Audio
Audio Compression G.711a; G.711Mu; PCM; G.726 (Only - ZAS supports)
Alarm
Alarm Event -ZAS:No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; intrusion; tripwire; scene changing; audio detection; voltage detection; defocus detection; external alarm; SMD; safety exception -ZS:No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; intrusion; tripwire; scene changing; voltage detection; defocus detection; SMD; safety exception
Network
Network Port RJ-45 (10/100 Base-T)
SDK and API Yes
Cyber Security Video encryption; firmware encryption; configuration encryption; digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade
Network Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
Interoperability ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone;
Genetec
User/Host 20 (Total bandwidth: 64 M)
Storage FTP; SFTP; Micro SD card (support max. 256 GB); NAS
Browser IE
Chrome
Firefox
Management Software Smart PSS; DSS; DMSS
Mobile Client iOS; Android
Certification
Certifications CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
Port
Audio Input 1 channel (RCA port) (Only - ZAS supports)
Audio Output 1 channel (RCA port) (Only - ZAS supports)
Alarm Input 1 channel in: 5 mA 3–5 VDC (Only - ZAS supports)
Alarm Output 1 channel out: 300 mA 12 VDC (Only - ZAS supports)
Power
Power Supply 12 VDC/PoE (802.3af)
Power Consumption Basic: 3.1 W (12 VDC); 4 W (PoE)
Max(WDR + IR intensity + Intelligence on): 6.9 W (12 VDC); 8.1 W (PoE)
Environment
Operating Temperature –30 °C to +60 °C (–22 °F to +140 °F)
Operating Humidity ?95%
Storage Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Protection IP67; IK10
Structure
Casing Metal
Product Dimensions 88.9 mm × ?122 mm (3.50" × ?4.80")
Net Weight 492g (1.08 lb)
Gross Weight 663g (1.46 lb)
