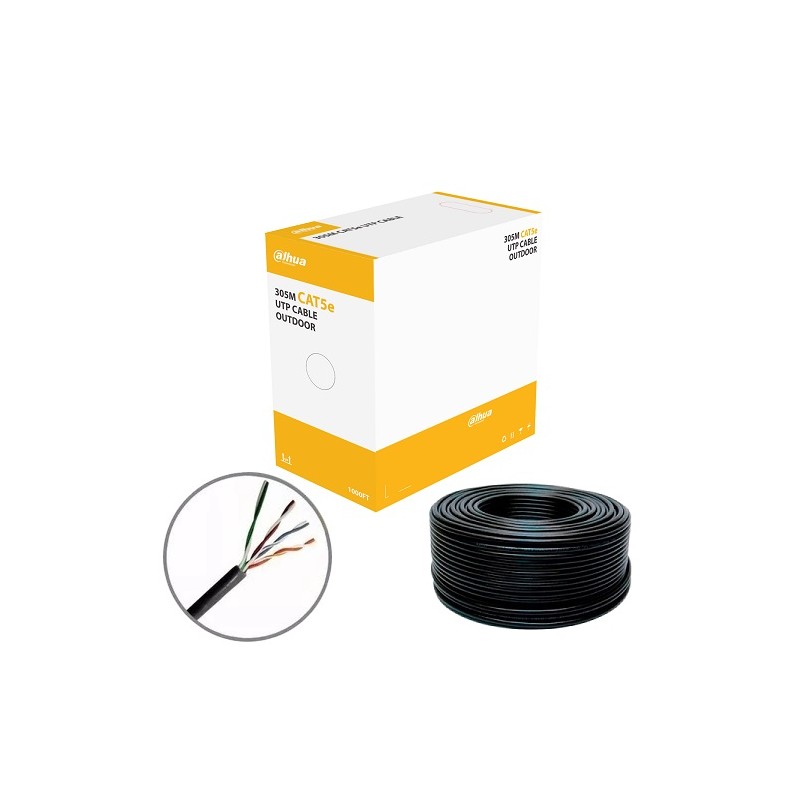

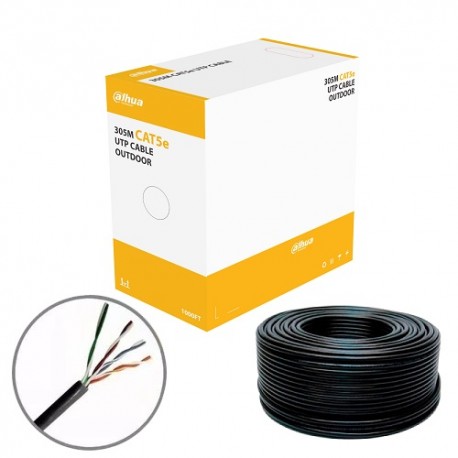

Dahua Lauko Kabelis CAT5E UTP 1x305m PFM920-5EU

Features:

• 305m /carton outdoor UTP CAT5e, power over Ethernet, compatible with one cable.
• High-purity (99.97%) Oxygen-Free Copper conductor material.
• Customized MDPE outer sheath; meet ANSI/TIA 568-C.2 flame retardant class certified.
• Environmentally friendly PVC and all materials used are RoHS compliant.

Technical Specifications:

• Material OFC (oxygen free copper) (99.97% purity).
• Conductor diameter: 0.50 mm ± 0.01 mm.
• American wire Gauge: 24AWG.
• Insulation material: HDPE.
• Insulation min. average thickness: 0.21mm.
• Insulation diameter: 0.89mm±0.06mm.
• Color: 8-core, blue, white/blue; orange, white/orange; green, white/green; brown, white/brown.
• Sheath material: MDPE.
• Sheath min. average thickness 0.7mm.
• Sheath Diameter: 5.2 mm ± 0.4 mm.
• Max. DC resistance of single conductor 9.5 Ohm/100m.
• Min. insulation resistance 5000MOhm·km.
• Max. DC resistance unbalance: 2% (pair intra), 4% (pairs inter).
• Dielectric strength: No breakdown with 1KV DC for 1 min.
• Max. attenuation: 22dB/100m@100MHz.
• Characteristic impedance: 100 ± 15Ohm.
• Near end cross talk: > /= 35.30 dB/100 m@100 MHz.
• Return loss: > /= 20.1 dB/100 m@100 MHz.
• Elongation at break: Sheath > /= 350%, Insulation > /= 300%.
• Tensile strength: Sheath > /= 12 MPa, Insulation > /= 16 MPa.
• Installation bending radius: > 8 times of outer cable diameter.
• Conductor elongation at break: > /= 15%.
• Shrinkage of insulation: < / = 5%.
• Operation temperature: –30°C to +60°C.
• Installation temperature: –5°C to +50°C.
• Storage temperature: –10°C to +40°C; Humidity: <60%.
• Length: 305m ± 1.5 m.
• Packaging dimensions: 406mm × 404 mm × 216 mm.
• Packaging method: 305m a carton, one protection carton with 2 cartons inside.
• Net Weight: 8.5 (± 0.6) kg.
• Packaging dimension 406mmx404mmx216mm.
• Weight (with packaging): 9.3 (± 0.6) kg.
• Executive standard: ANSI/TIA 568-C.2.
